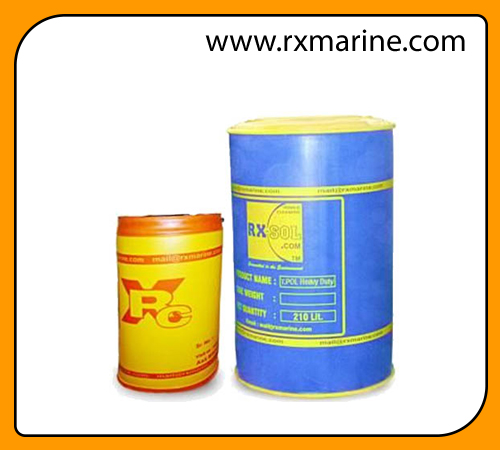

Medium Cloud Point Glycol (RXSOL MCPG)
Part No. RXSOL-81-8199-210
MCPG
Medium-Cloud-Point polyglycol for moderate-salinity fluids and high temperatures.
Key details
| Part number | RXSOL-81-8199-210 |
|---|---|
| Generic name | MCPG |
| Standard packing | 210.00 Kg.Liq |
| Available pack sizes | 210 Kgs |
| Supply locations | Medium Cloud Point Glycol RXSOL MCPG manufacturer and supplier in Mumbai, Gandhidham, Chennai, Visakhapatnam, Kolkata, Fujairah, Sharjah, Abudhabi, UAE Middle East, Muscat - sohar Oman |
Need this product at your port or plant?
Enquire NowRXSOL MCPG has application in polyglycol systems in fresh-to-medium salinity makeup water and can be used in wells with low formation temperatures. This medium cloud-point additive helps to stabilize troublesome shales by reducing liquid phase activity and by plugging shale pores, preventing the equalization of hydrostatic pressure away from the wellbore. Polyglycol systems are generally low-to-medium density, nondispersed polymer systems utilizing an electrolyte to activate the cloud-point polyglycol. They have application where troublesome water-sensitive shales are to be drilled, and can be used in lieuof oil-base systems for certain applications. Medium Cloud Point Glycol RXSOL MCPG can be used in Thermally Activated Mud Emulsion(TAME) applications (near the cloud point) or in situations where it is insoluble (above the cloud point).
Normal concentrations of RXSOL MCPG range from 2 to 5% or 7 to 17.5 lb/bbl (20 to 50 kg/m3). After the initial treatment, periodic treatments should be made to maintain the desired concentration. Two field test methods are available to monitor the concentration of Medium Cloud Point Glycol RXSOL MCPG .
“Cloud point” is the temperature where polyglycol additives change from being soluble (at lower temperatures) to being insoluble (at higher temperatures). Shale inhibition is improved when the polyglycol is insoluble or “clouded out.” The cloud-point temperature can be reduced by increasing salinity (or other electrolytes) and/or by increasing the concentration of Medium Cloud Point Glycol RXSOL MCPG.
| Description | : | Light Brown Clear Liquid |
| Specific Gravity | : | 1.00 – 1.10 |
| Flash Point | : | More than 100°C |
| Solubility in water | : | Completely soluble |
| pH Value | : | 5.5 - 7.0 |
| Cloud Point | : | 60–72°C @ 3% Solution in 10% KCl ( v/v) |
Odour : Mild
Pour Point : -12 max
<p style="text-align: justify;">
<span style="text-align: justify;">Medium Cloud Point Glycol</span><span style="text-align: justify;"> RXSOL MCPG is a broad cloud-point, wide molecular weight range, additive designed for medium-to-high salinity polyglycol systems. It can provide improved shale stability, lubricity, high-temperature filtration control, plus reduce dilution rates and bit balling.RXSOL MCPG is recommended for freshwater to seawater polyglycol systems. While polyglycols are most effective when used in conjunction with an inhibitive salt in non-dispersed polymer systems, they can be used as additives in most water-base systems.</span><span style="text-align: justify;">It is a free flowing liquid,without dirt and other visible foreign suspended matter and has a mild odour. It is primarily used in KCL and PHPA muds.</span></p>
Advantage :
- Improved wellbore stability and shale inhibition.
- Improved lubricity.
- Improved high-temperature filtration control.
- Wide molecular weight range covers wide temperature range.
- Reduced dilution rates and mud consumption.
- Reduced bit balling potential.
- Low toxicity.
Limitation : As an insoluble liquid it causes slight increases in plastic viscosity.
Toxicity And Handling : Bioassay information is available upon request. Handle as an industrial chemical, wearing protective equipment and observing the precautions as described on the Material Safety Data Sheet (MSDS).
